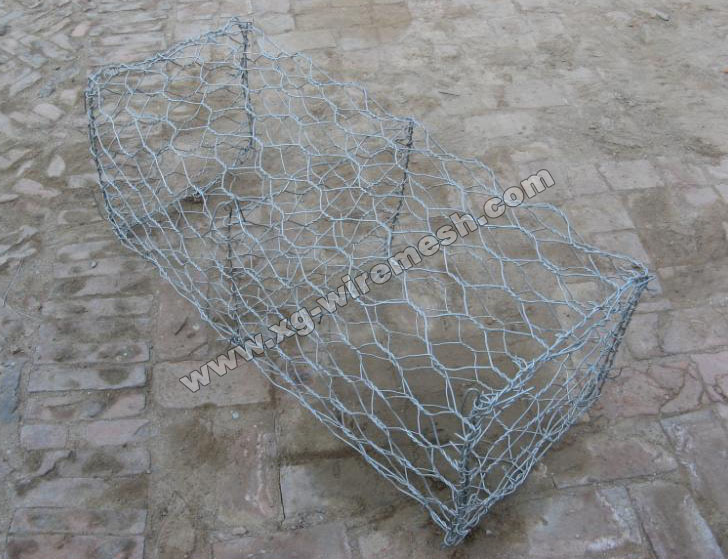

Gabion Box
Hexagonal Wire Netting Gabions are wire containers made of
hexagonal wire netting. Wire diameter varies with the hexagonal
nettings. For hexagonal wire netting with no pvc coating, the
wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated
hexagonal wire netting, the outside diameter ranges from 3.0mm
to 4.0mm. The wire of the outside frame edge is one wire gauge
thicker than the wire used for hexagonal wire netting.
Features:
Economic. Just fill the stone into the gabions and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a
integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.
Less transport freight. It can be folded together for transport
and further installation.
Specifications：
|
The Specification Of Gabion Box |
|||||
|
Length |
Width |
Height |
Diaphragm |
Volume |
Tolerance |
|
2.0m |
1.0m |
0.3m |
1 |
0.6m3 |
|
|
3.0m |
1.0m |
0.3m |
2 |
0.9m3 |
|
|
4.0m |
1.0m |
0.3m |
3 |
0.2m3 |
|
|
2.0m |
1.0m |
0.5m |
1 |
1.0m3 |
L +/- 3% |
|
3.0m |
1.0m |
0.5m |
2 |
1.5m3 |
W +/- 5% |
|
4.0m |
1.0m |
0.5m |
3 |
2.0m3 |
H +/- 5% |
|
1.0m |
1.0m |
0.5m |
0 |
1.0m3 |
|
|
1.5m |
1.0m |
1.0m |
0 |
1.5m3 |
|
|
2.0m |
1.0m |
1.0m |
1 |
2.0m3 |
|
|
3.0m |
1.0m |
1.0m |
2 |
3.0m3 |
|
|
4.0m |
1.0m |
1.0m |
3 |
4.0m3 |
|
